WF125LTDB07NPJESN

产品型号：WF125LTDB07NPJESN
所属类别：Wire to board系列 / 1.25mm pitch

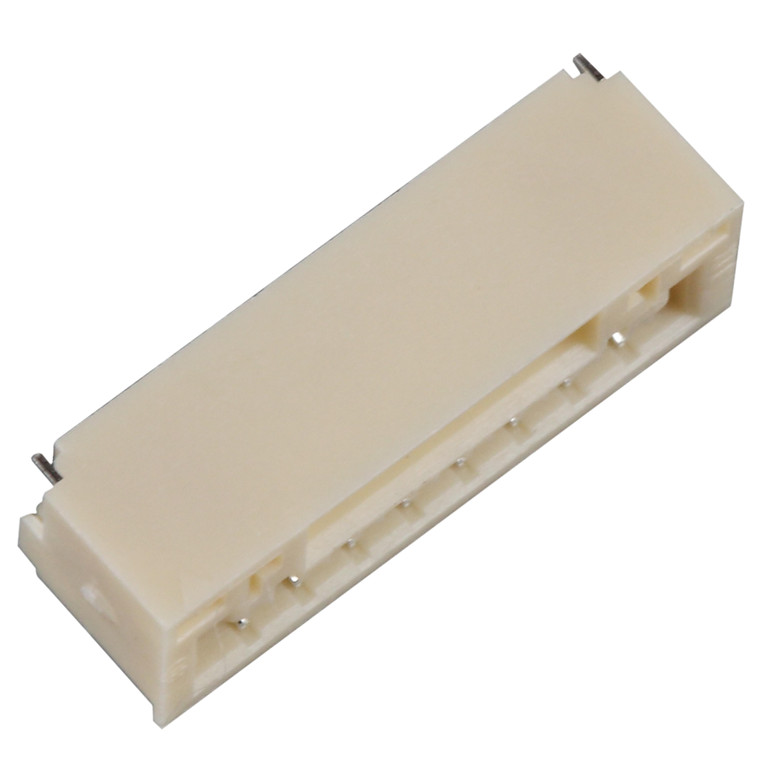

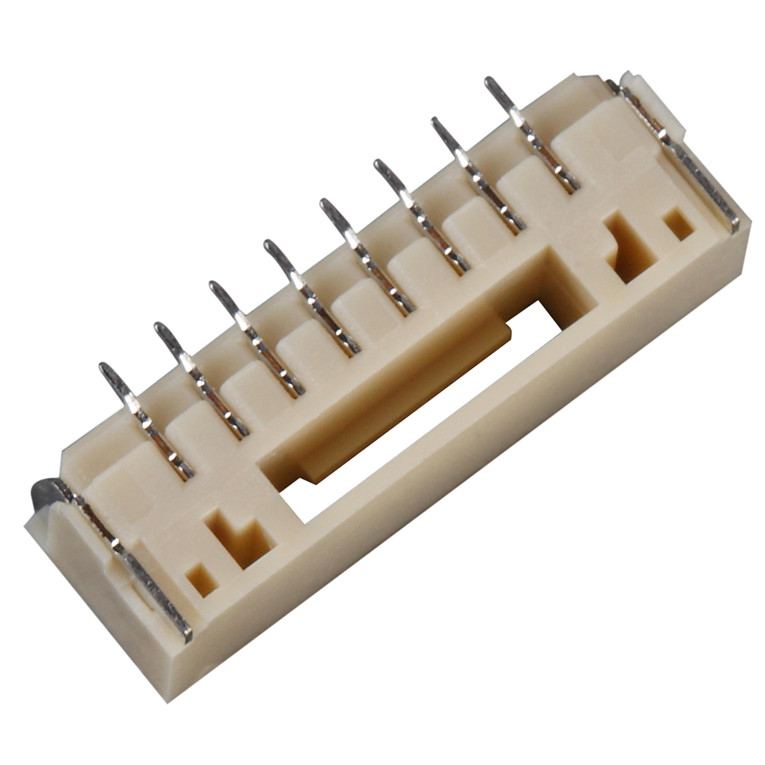

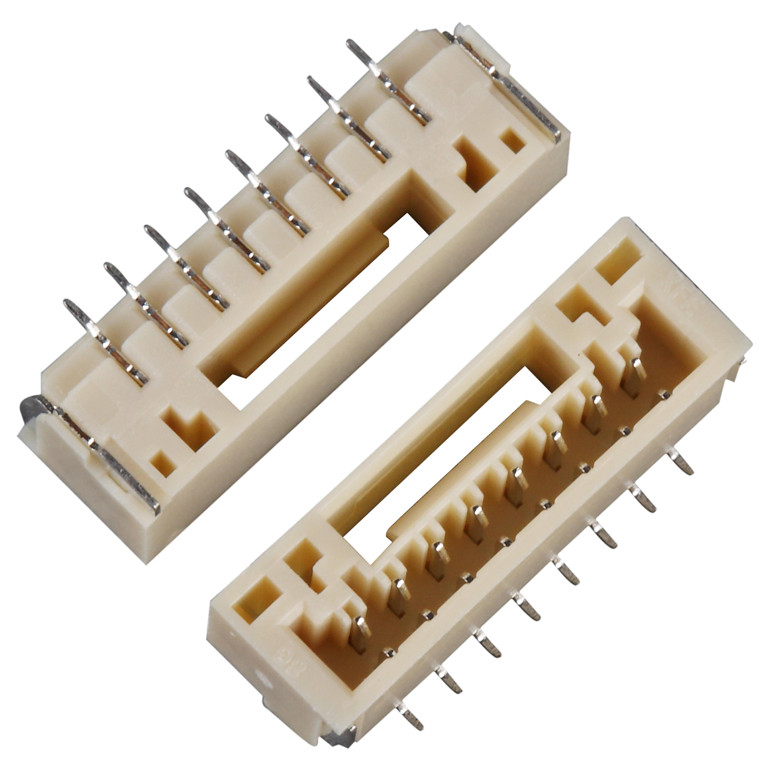

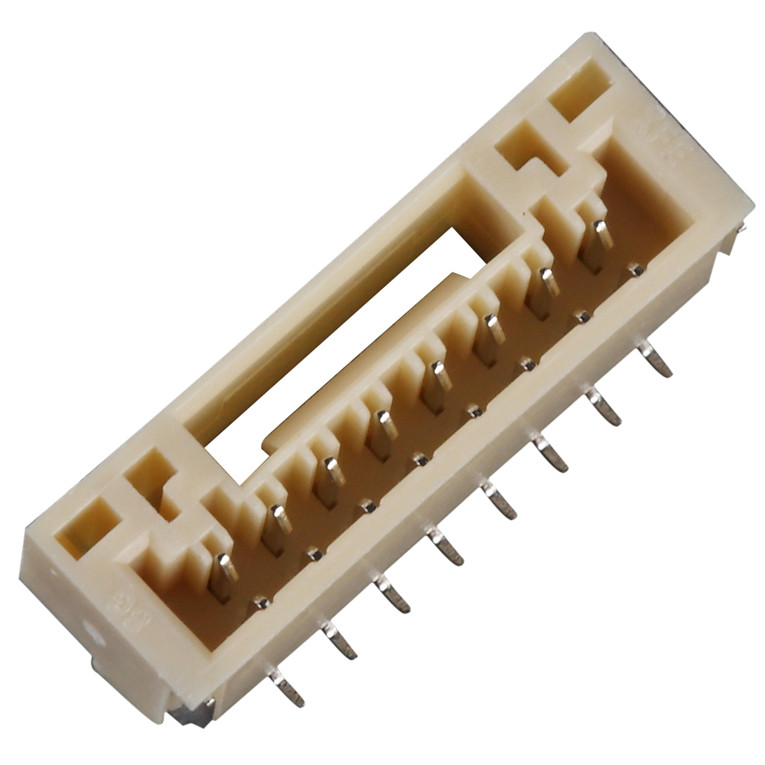

产品名称：Pitch 1.25mm  Wire to board 连接器

1.25T Series  1.25mm WTB CONN,Straight,SMT,With Lock

间距(Pitch)：1.25mm
线数(Poles)：6
额定电流(Current rating)：1AMP
绝缘电阻(Insulation resistance):≥1000MΩ
接触电阻(Contact resistance)：≤0.03Ω
耐电压（Withstanding Voltage）:1000V,AC/Minute
额定电压(Voltage rating)：200V AC/DC
工作温度（Operation Temperature）:-25℃~+85℃

材质（Material）:
接触区域（Contact）:C5191 磷铜
电镀（Plating）:Sn over Ni
塑胶本体（Insulator）:High Temperature Thermoplastic(94V-0)
