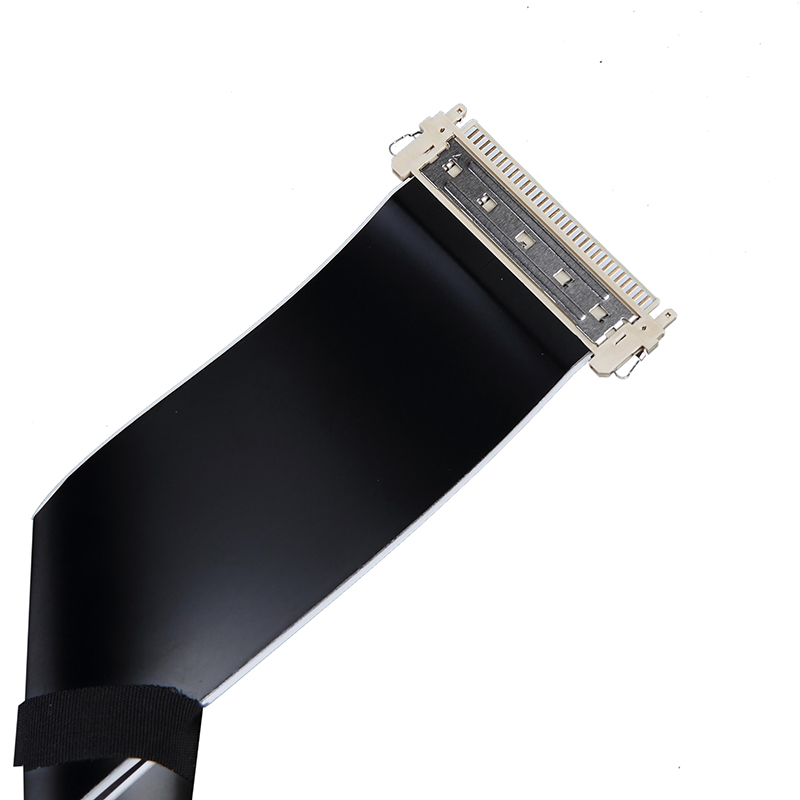

0.5MM Pitch.40Poles,Overall Length 30-2000MM,P21Type

0.5MM Pitch.40Poles,Overall Length 30-2000MM,P21Type



Pitch:0.5mm

NO.of Conductor:40

Overall Cable Length:30-2000mm

Exposed Conductor Length:3.5/3.5mm

Supporting Tape Length:18/8mm

Conductor Spec (Ct*Cw):0.035*0.3mm

Type:AA

Grounding:Without Grounding

Lock:With Lock

Shielding:Without Shielding



Material:

Insulator:Insulating Film(PET)

Supporting Tape:PET

Conductor:Copper

Plating:AU
