FP050WTFA23NPJFSN
产品型号:FP050WTFA23NPJFSN
所属类别:FFC/FPC系列 / 0.5mm pitch

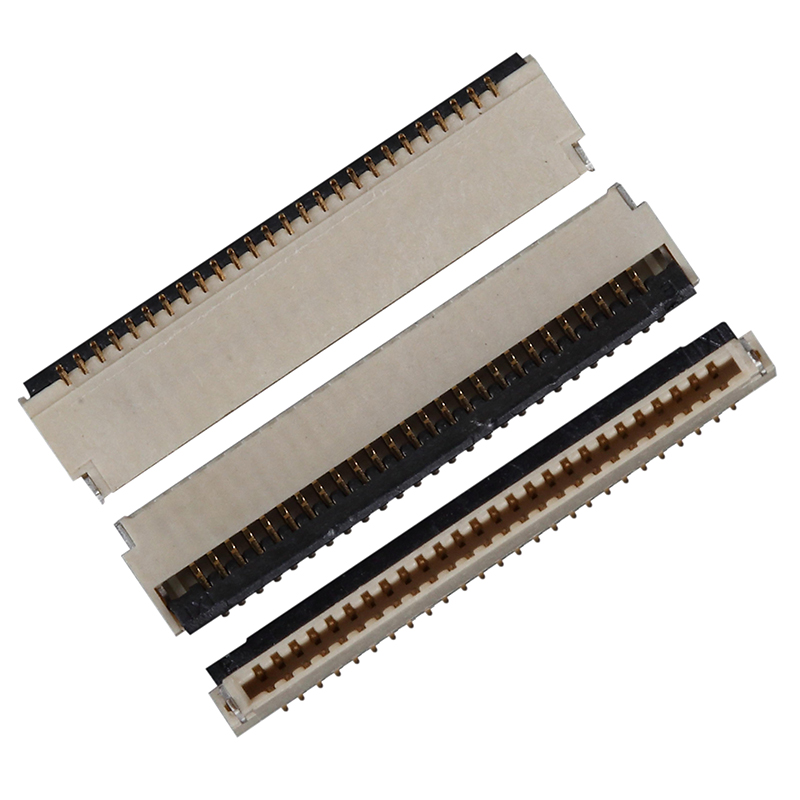

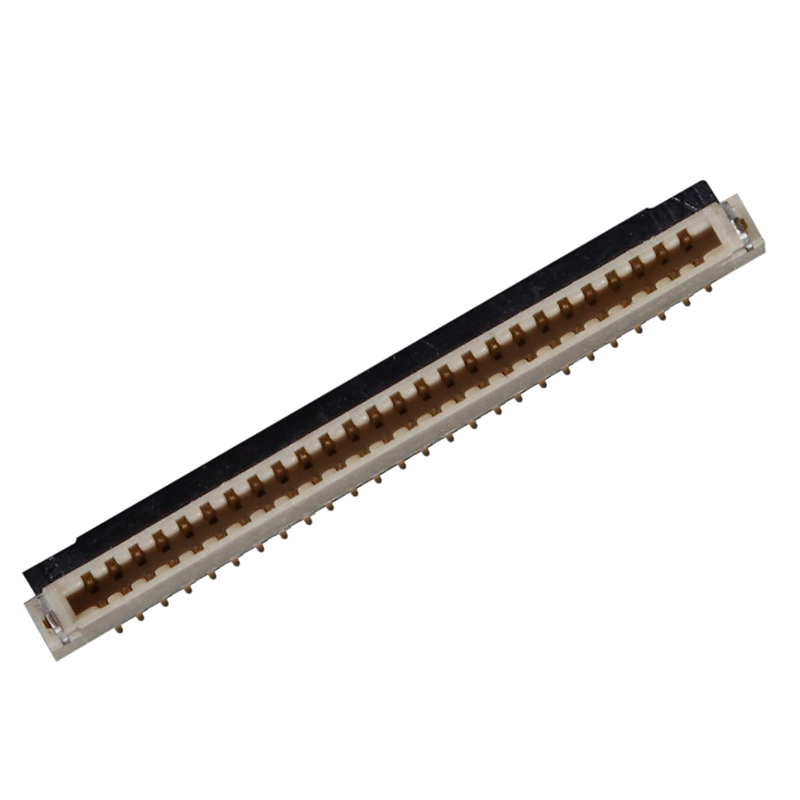

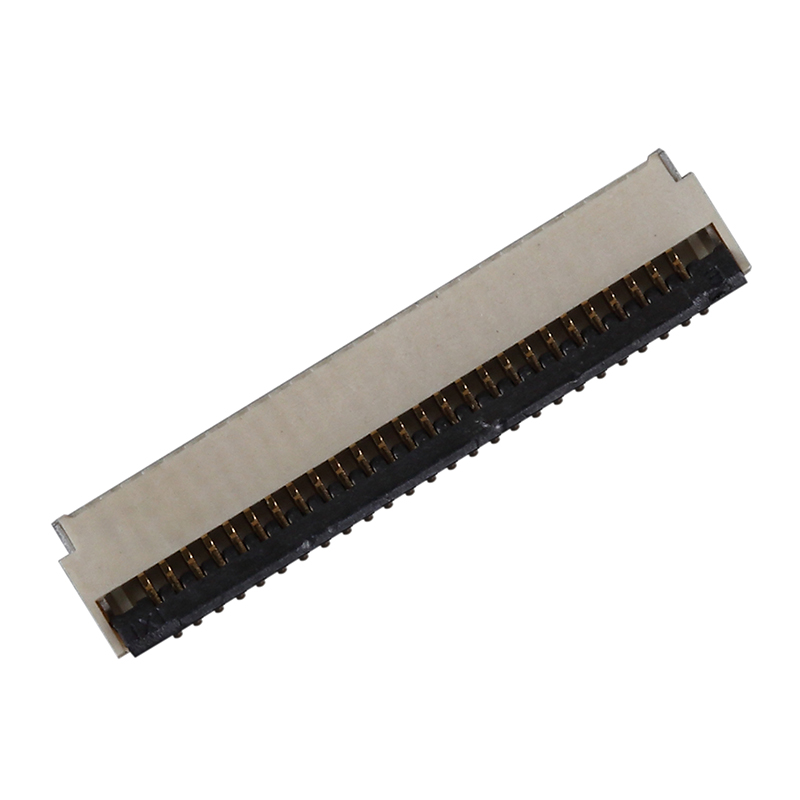

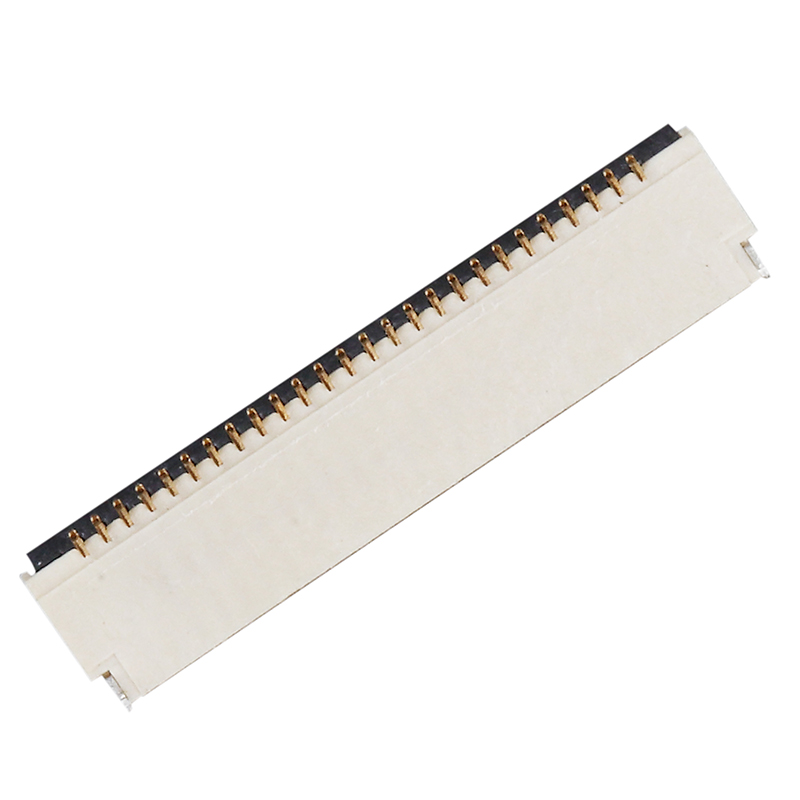

产品名称:Pitch 0.5mm FPC 连接器
0.5-23 Series 0.5mm FPC CONN .ZIF,R/A,SMT,Backflip,H=1.05,Dual Bottom Contact
间距(Pitch):0.5mm
线数(Poles):26
额定电流(Current rating):1AMP
绝缘电阻(Insulation resistance):≥500MΩ
接触电阻(Contact resistance):≤0.03Ω
耐电压(Withstanding Voltage):500V,AC/Minute
额定电压(Voltage rating):125V AC/DC
工作温度(Operation Temperature):-25℃~+85℃
材质(Material):
接触区域(Contact):C5191 磷铜
电镀(Plating):Sn over Ni
塑胶本体(Insulator):High Temperature Thermoplastic(94V-0)
